Installation date:
10/8/01
If you're looking
to improve the sound system in your TJ, well, you need to check out
the ModPod by Select Increments. These nifty speaker boxes mount snugly
to the kick panel just under the door. Despite how it might look, we
have yet to hit these things with our feet, so there's really no loss
in foot room and the difference in the sound system is great.
|
|

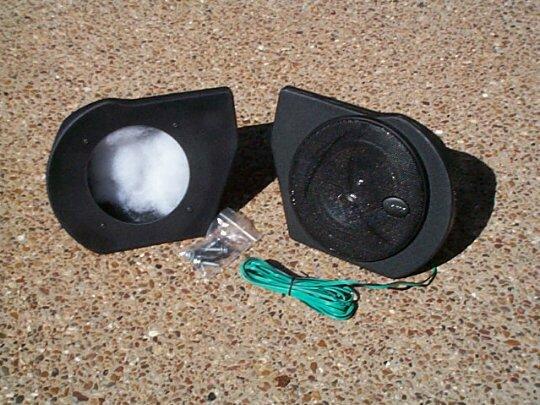

The pods themselves
are pretty simple, just some smallish molded speaker boxes made
from 1/8" plastic. They fit 5.25" round speakers, and
you can order them with or without a set of Profile 5.25"
coax poly speakers.
We opted to go ahead and get the Profile speakers.
|
|
Installation

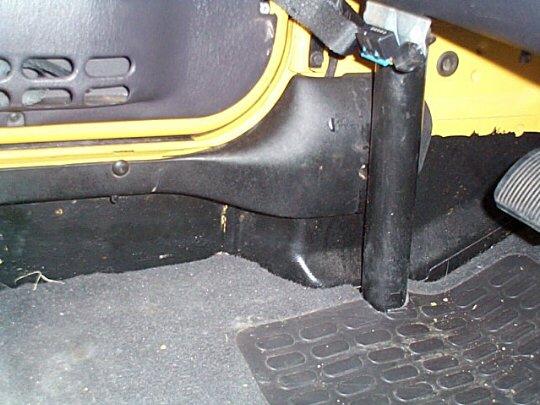

is pretty straight forward. First thing to do is remove the wire
bundle guard on the driver's side, it just pops off. It doesn't
get reused, so if you break it, no big deal. The bar from our
roll cage got in the way of the guard, so I ended up snapping
it in half trying to get it out, whoops!
|
|
|
|

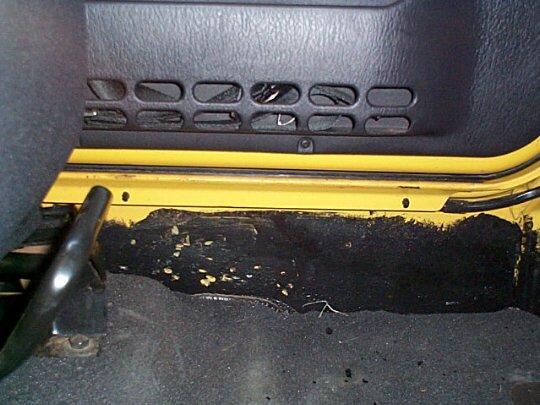

The wiring
bundle is clipped to the back of the guard with pop-in clips,
just pop the clips out.
|
|

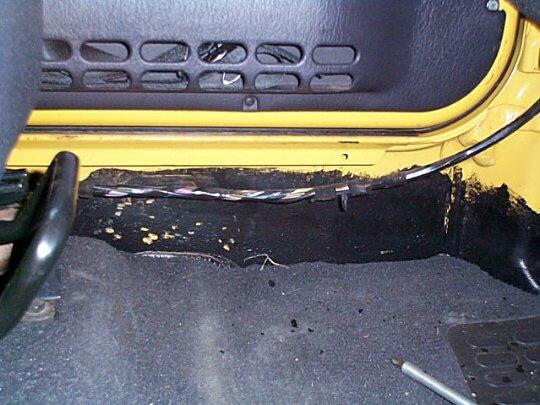

The funny
thing is, the clips are just the right distance and size to snap
into the mounting holes on the doorsill for the guard! So, you
can use the clips to clip the wiring bundle to the rocker panel.
Why Jeep doesn't just do this to begin with and skip the plastic
guard completely is beyond me...
|
|
|
|

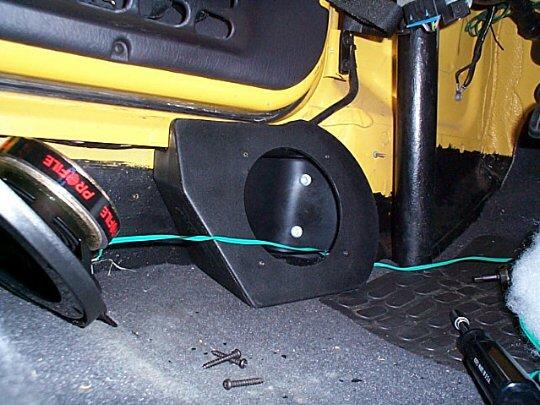

Next you'll
want to hold the ModPod in position and mark the 2 mounting holes.
The bolts supplied are supposedly self drilling and tapping, but
I found it to work a lot easier if I marked the holes, moved the
ModPod, and used a drill to drill a couple of pilot holes. The
bolts when right in then.
|
|

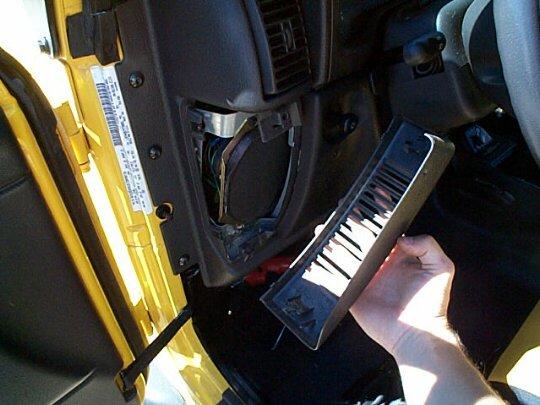

Now you'll
need to run the speaker wires up to the factory speakers in the
dash. A couple of screws later than the speaker grill in the dash
pops right off. I used some inline wire splices and left the factory
dash speaker plugged in. This doesn't seem to have any negative
effects on either the dash speaker or the ModPod, and helps boost
the sound up front.
|
|
|
|

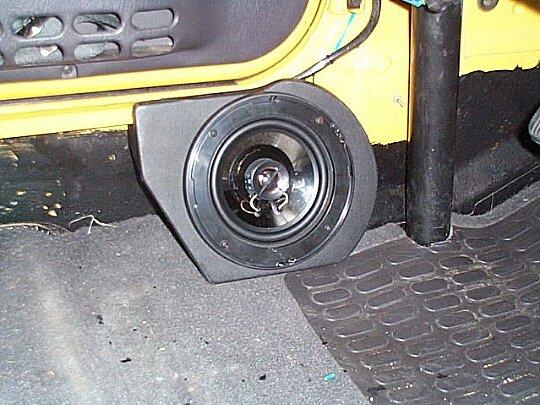

Now that the
speaker leads are hooked up, put the nylon baffle material back
in the ModPod and mount the speaker.
|
|

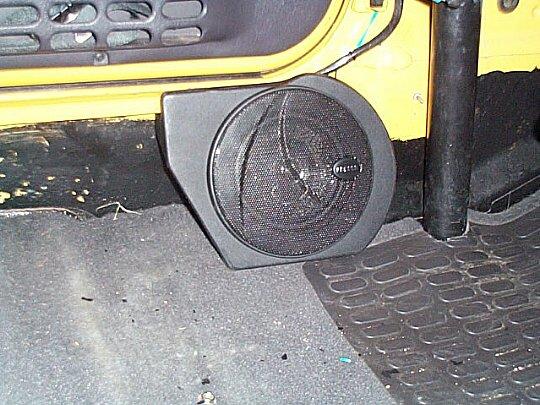

Clip on the
speaker grill and you're ready to rock (pun intended).
The ModPods
run about $90 a pair without speakers, and $150 a pair with the
Profile coax speakers. They really sit pretty snug under the door
sill, even though it's hard to tell from the pics, and as I said
above, they have yet to get in our way.
|
|
The improvement
in the sound was huge though, definitely a welcome improvement. They're
angled up at the driver and passenger to increase the sound coming from
the front of the vehicle. Now, when we're driving around, especially
with the top down, it doesn't just sound like the overhead speaker bar
blaring in our ears, it's much more full and balanced front to rear,
just the way a car, er, Jeep, stereo should be!
