K&N Filtercharger Injector Performance Kit
By Gary
Rohrer |
K&N
Filtercharger Injector Performance Kit Installation
Like
all fellow Jeepers I am interested in the constant pursuit of improving
my rig. Whether it’s suspension improvements, exterior modifications
or engine improvements, we all have the drive to make our Jeeps a better
vehicle.

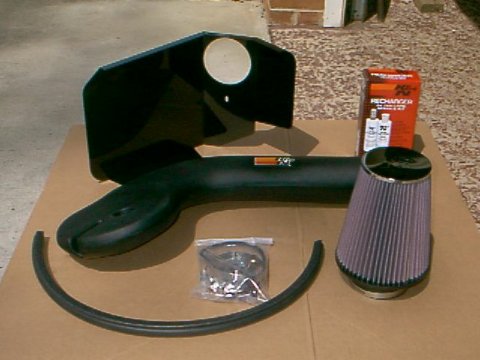

If you
an ZJ owner with a 5.2L V-8 there is one engine modification
that is worth every penny of it’s price. It’s a K&N Filtercharger
Injector Performance Kit or FIPK for short. This is a simple
intake plenum and Air Filter that replaces your stock filter
and intake. The performance gains are incredible! K&N claims
to have dyno’d a Grand Cherokee and gained 26Hp with this kit.
After installing one and feeling the results I believe this
to be true.
|
|
I
researched this kit at K&N
web site and compared it to a similar product that Turbo City sells.
Turbo City’s
K&N intake for the 5.2L V-8, looks really sexy since it uses two
K&N filters and it costs less than the K&N’s FIPK. I decided on the
K&N kit since it creates an air baffle around the filter to separate
the hot air in the engine compartment from the cooler air around the
filter. Turbo City’s kit places the filter near the firewall above the
heads and exhaust manifolds. K&N’s kit seems like it would have a better
chance of drawing in cooler air than Turbo Cities kit. Cooler air of
course provides better combustion.
I
visited several on-line stores that carry this product. I finally settled
on purchasing it from JC Whitney
since they had the lowest price and free shipping at the time. I
did have a bit of delay with the shipping since they used Airborne Express
@ Home service. Airborne has partnered with the US Postal service for
this service. Turns out the local carrier didn’t want to deliver a large
15-pound box to my address! After a call to Airborne it was promptly
delivered.
|
|
Installation
of the kit took about an hour and half, and that included taking
pictures along the way and notes for this article. You’ll need
a standard and metric wrench set along with metric sockets. K&N
provides excellent instructions however some of the pictures are
small and hard to make out.

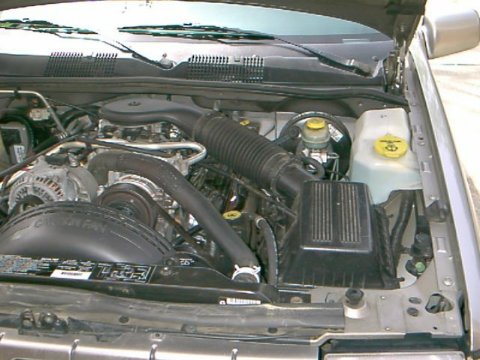

To begin
with you’ll need to remove the stock airbox/filter and intake.
Remove the nut that secures the intake to top of the throttle
body and undo all the clamps around the air filter. You’ll also
need to remove the crankcase vent hose that attaches to the top
of the air box. The upper intake plenum should come right off.
|
|
Remove the
air filer elements and remove the three bolts that hold the air
box to the fender. This seemed simple but proved to be tricky
since the nuts were located under the fender and were not secured
in place. I turned the tires to the left and placed a wrench on
the nut while loosening the bolt above with a ratchet. Once the
three bolts are removed the lower half of the air box comes out
leaving it’s puny intake hanging near the radiator.
|
|
|
|
There is
a one plastic connector that holds this intake duct in the grill.
I simply used an old hack saw bladed to cut the plastic connector.

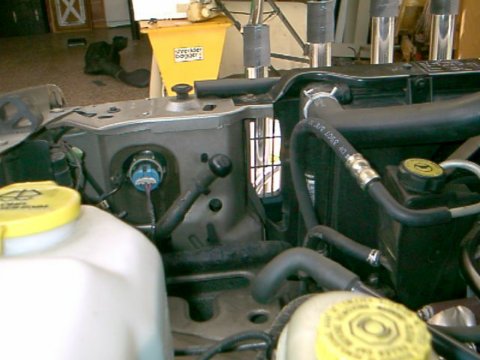

After this is removed it may be necessary to cut some of the rubber
shash guard away to provide maximum airflow to the intake. This
picture illustrates the shash guards removal. Basically you can
see directly from the engine compartment to the outside through
the grill.
|
Next
it is necessary to remove the stud assembly from the top of the throttle
body. This is easily accomplished with a 7/16" ratchet. Be careful no
parts or contaminates get into the intake.
|
With the
removal of the stock equipment it is time to install the K&N parts.
To begin you have to assemble some rubber isolators to the bottom
of the K&N heat shield. Use the washers and nuts provided with
the K&N kit. Before installing the heat shield into your Jeep
I would install the rubber trim seal. K&N instructions said to
do this after mounting the heat shield in the Jeep but think it
would have been easier to manipulate the seal around the corners
of the shield while it was off of the vehicle. Once this is done
install the shield in two of the mounting holes that held the
original air box. You will have to secure it in place underneath

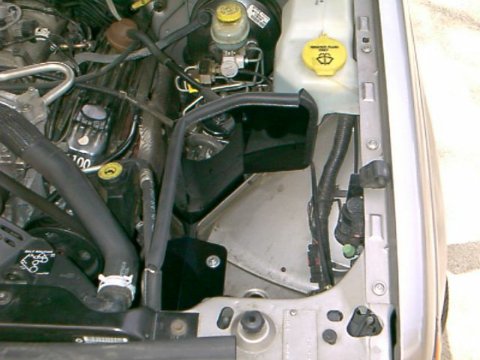

the fender using some of the provided washers and nuts. This image
shows the heat shield installed with the trim seal on the upper
edge.
|
|
|
|
Now it’s
time to assemble the saddle bracket that supports the intake.
K&N provides the necessary nuts & bolts. This bracket mounts to
the heat shield and can allow for up or down adjustment of the
intake. Before we install the intake, screw the provided stud
into the throttle body where the stock bolt held the stud assembly.
Be careful here since you are screwing this into soft aluminum.
Also place the new gasket onto the throttle body and place the
stand off on to the new stud.
|

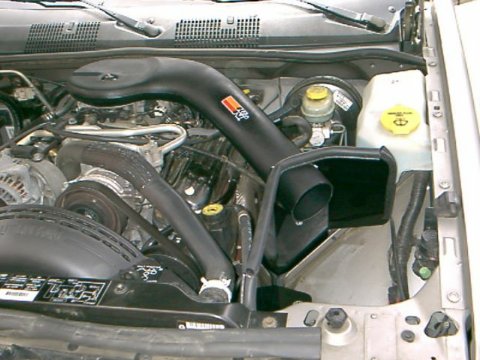

Now
it’s time to carefully place the large intake plenum into the heat shield
and onto the throttle body. Again be mindful of the stud in the throttle
body so you don’t bend it side to side. Use the original nut and a new
washer to secure the plenum to the throttle body. Also adjust the saddle
bracket on the heat shield to support the intake. Use a new hose clamp
to hold the intake to the bracket. Be sure to inspect around the gasket
to ensure you have a good seal between the intake and the throttle body.
|
Now is a
good time to reconnect the crankcase breather to the fitting on
the side of the new intake. I found my hose had a bind in it since
the K&N fitting sits farther back than the factory setup. I simply
cut 3/4" off of the plastic tube between the hoses and the angle
was back to normal. Your set up may vary.

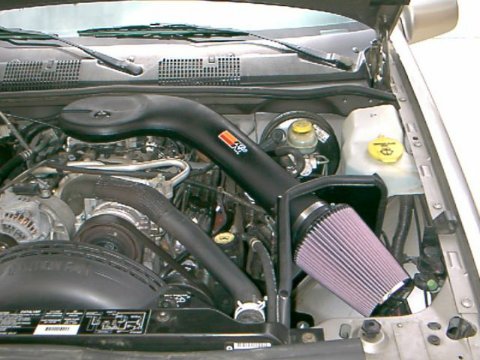

Finally
install the K&N Filtercharger and secure it in place with its
hose clamp. Now go back and make sure everything is secure and
fits properly.
|
|
Once
your satisfied start up the engine and listen for any loose parts or
vibrations. Also insect around the gasket for any leaks. Now you are
ready for test drive! Be aware, your Jeep will now launch from stop.
This is where I noticed the most improvement. Before the ZJ seemed like
there just wasn’t enough get up and go. After installation the ZJ is
ready to take off with no hesitation! It accelerates much more easily
with this kit.
Under
normal driving conditions I can tell no difference in sound from the
new intake. Under hard acceleration I can hear the air flowing into
the throttle body, but only with the radio turned down. The added noise
is not significant. If you have ZJ with a V-8 you owe it to yourself
to get this kit. The increase in power is substantial considering it’s
easy installation and it cost.
